Silicone Tapes

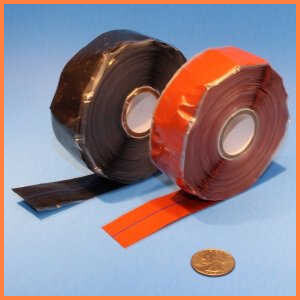

ABS 5334 Airbus Standard 66N 67N Silicone Rubber Electrical Insulation Tape
Temperature Range: -54°C to +260°C / -65°F to +500°F
FlameShieldä Airbus Standard ABS 5334 (66N & 67N) equivalent silicone rubber tapes meet MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
Airbus Standard ABS 5334 silicone rubber tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
These tapes are available in red and black.
Airbus Standard ABS 5334 (66N & 67N) tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
May also be cross-referenced to:
· 66N - NSN 5970-14-467-8824
· 67N - NSN 5970-14-474-7041
