Silicone Tapes

Garmin 249-00114-00 Silicone Rubber Self Fusing Electrical Tape


Temperature Range: -54°C to +260°C / -65°F to +500°F

FlameShieldä Garmin 249-00114 equvalent silicone rubber self-fusing tape meets A-A-59163 and Mil-I-46852 specification for use in avionics wiring.  Popular for protecting wiring at the backshell clamp.

The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself.  The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade.  This tape makes a waterproof, weatherproof and air tight protection.

This tape is available in almost any color, but oxide-red and black are the most common.

FlameShieldä tapes meeting A-A-59163 and Mil-I-46852 provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value.

This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts.

This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).

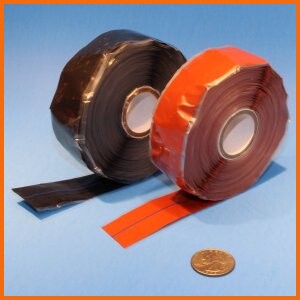

Garmin 249-00114 avionics tape
Garmin 249-00114 avionics tape
