Silicone Tapes
ASNA 5107-2501 5107-2502 5107-2503 Equivalent Silicone Rubber Electrical Insulation Tape
Temperature Range: -54°C to +260°C / -65°F to +500°F

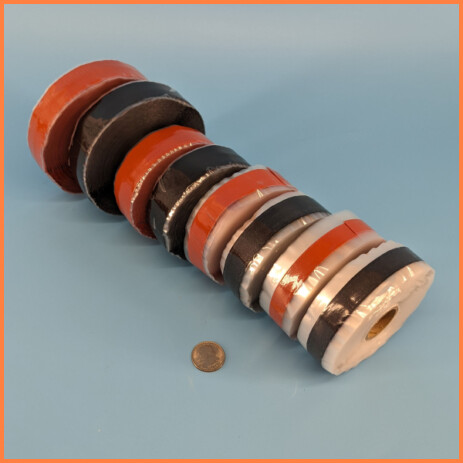

FlameShieldä ASNA5107 equivalent silicone rubber tapes meet MIL-I-22444 specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments. Available in 3 widths: 5107-2501, 5107-2502, 5107-2503.
ASNA 5107 equivalent tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

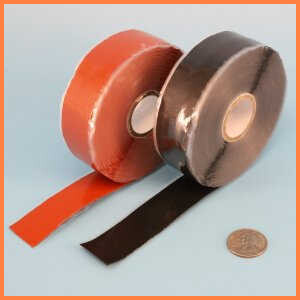

These tapes are available in red and black.
ASNA 5107 equivalent tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
Meets the following specifications:
· DMS 2186, Type I (S version only)
· RL6000SA
· RMS 315, Type I
· IBM PN 6084744
· MIL-I-22444
· GE A50493
· AE 26495-001
· NSN 5970-01-325-8971 (SA version only), 5970-14-464-7312 (68N) is oxide-red
